Beschreibung

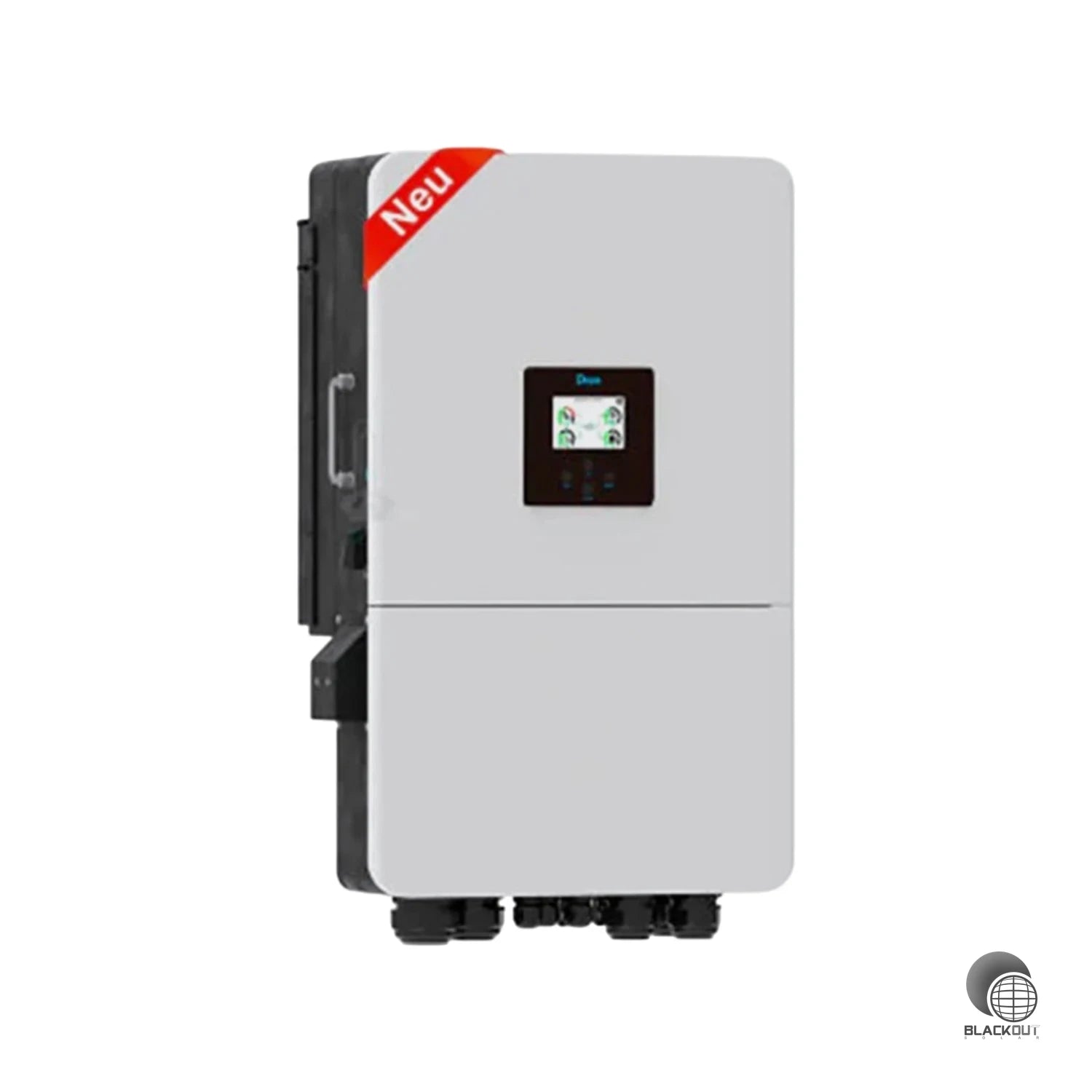

Deye Hybrid SUN-20K-SG05LP3-EU-SM2 - Niedervolt 48VSUN-20K-SG05LP3-EU-SM2 | Dreiphasig | 2MPPT | Hybrid-Wechselrichter | für Niedervolt Batterien / Speicher LV

Inklusive 10Jahre Garantie

100% unsymmetrische Ausgang: jede Phase max. Ausgang ist bis zu 50% der Nennleistung

Wechselstrom-Paar zur Nachrüstung bestehender Solaranlagen

Max. 10 Einheiten parallel (Grid-gebundene/off-Grid-Modbus)Unterstützt die parallele Verbindung mehrerer Batterien

Max. Lade-/Entladestrom von 350A

48V Niedervoltbatterie, Transformator-Isolationsdesign

6 einstellbare Zeiträume zum Laden und Entladen der Batterie

Unterstützt die Energiespeicherungaus Dieselgenerator

GÜLTIGE TOR ZULASSUNG FÜR ÖSTERREICH!

Modell SUN-14K-SG05LP3
-EU-SM2 SUN-15K-SG05LP3
-EU-SM2 SUN-16K-SG05LP3
-EU-SM2 SUN-18K-SG05LP3
-EU-SM2 SUN-20K-SG05LP3
-EU-SM2

Battery Input Data

Battery Type Lead-acid or Lithium-ion

Battery Voltage Range (V) 40-60

Max. Charging Current (A) 260 280 300 330 350

Max. Discharging Current (A) 260 280 300 330 350

Charging Strategy forLi-ion Battery Self-adaption to BMS

Number of Battery Input 1

PV String Input Data

Max. PV Access Power (W)
28000 30000 32000 36000 40000

Max. DC Input Power (W) 21000 22500 24000 27000 30000

Max. DC Input Voltage (V) 800

Start-up Voltage (V) 160

MPPT Voltage Range (V) 160-650

Rated DC Input Voltage (V) 550

Max. Operating PV Input Current (A) 36+20

Max. Input Short-Circuit Current (A) 54+30

No.of MPPT Trackers/
No.of String PerMPPT Tracker 2/2+1

AC Input/Output Data

Rated AC Input/Output Active Power (W) 14000 15000 16000 18000 20000

Max. AC Input/Output Apparent Power (VA) 15400 16500 17600 19800 22000

Rated AC Input/Output Current (A) 21.3/20.3 22.8/21.8 24.3/23.2 27.3/26.1 30.4/29

Max. AC Input/Output Current (A) 21.3/20.3 22.8/21.8 24.3/23.2 27.3/26.1 30.4/29

Max. Continuous AC Passthrough (grid to load) (A) 70

Peak Power (off-grid) (W) 2 times of rated power, 10s

Power Factor Adjustment Range 0.8 leading to 0.8 lagging

Rated Input/Output Voltage/Range (V) 220/380V, 230/400V 0.85Un-1.1Un

Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65

Grid Connection Form 3L+N+PE

Total Current Harmonic Distortion THDi <3% (of nominal power)

DC Component of Grid <0.5% In

Eﬃciency

Max. Efﬁciency 97.6%

Euro Efﬁciency 97.0%

MPPTEfﬁciency >99%

Equipment Protection

Integrated
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,

AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,

Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),

Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,

DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level

Surge Protection Level TYPE II(DC),TYPE II(AC)

Interface

Communication Interface RS485/RS232/CAN

Monitor Mode

GPRS/WIFI/Bluetooth/4G/LAN(optional)

General Data

Operating Temperature Range (℃) -40 to +60℃, >45℃ Derating

Permissible Ambient Humidity 0-100%

Permissible Altitude 3000m

Noise ≤60

Ingress Protection(IP) Rating IP 65

Inverter Topology Non-Isolated

Over Voltage Category OVC II(DC), OVC III(AC)

Cabinet Size (WxHxD mm) 456×750×268.5 (Excluding Connectors and Brackets)

Weight (kg) 50.6

Type of Cooling Intelligent Air Cooling

Warranty 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy

Grid Regulation IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99,VDE-AR-N 4105

Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Datenblatt: Download

Zertifikat TÜV: Download

Zertifikat EU Declaration of Conformity: Download

Modell	SUN-14K-SG05LP3 -EU-SM2	SUN-15K-SG05LP3 -EU-SM2	SUN-16K-SG05LP3 -EU-SM2	SUN-18K-SG05LP3 -EU-SM2	SUN-20K-SG05LP3 -EU-SM2
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	260	280	300	330	350
Max. Discharging Current (A)	260	280	300	330	350
Charging Strategy forLi-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max. PV Access Power (W)	28000	30000	32000	36000	40000
Max. DC Input Power (W)	21000	22500	24000	27000	30000
Max. DC Input Voltage (V)	800
Start-up Voltage (V)	160
MPPT Voltage Range (V)	160-650
Rated DC Input Voltage (V)	550
Max. Operating PV Input Current (A)	36+20
Max. Input Short-Circuit Current (A)	54+30
No.of MPPT Trackers/ No.of String PerMPPT Tracker	2/2+1
AC Input/Output Data
Rated AC Input/Output Active Power (W)	14000	15000	16000	18000	20000
Max. AC Input/Output Apparent Power (VA)	15400	16500	17600	19800	22000
Rated AC Input/Output Current (A)	21.3/20.3	22.8/21.8	24.3/23.2	27.3/26.1	30.4/29
Max. AC Input/Output Current (A)	21.3/20.3	22.8/21.8	24.3/23.2	27.3/26.1	30.4/29
Max. Continuous AC Passthrough (grid to load) (A)	70
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)	220/380V, 230/400V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Grid Connection Form	3L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Component of Grid	<0.5% In
Eﬃciency
Max. Efﬁciency	97.6%
Euro Efﬁciency	97.0%
MPPTEfﬁciency	>99%
Equipment Protection
Integrated	DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (℃)	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	3000m
Noise	≤60
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)	456×750×268.5 (Excluding Connectors and Brackets)
Weight (kg)	50.6
Type of Cooling	Intelligent Air Cooling
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation	IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99,VDE-AR-N 4105
Safety / EMC Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
